FOCUSUN Domestic 20t Plate Ice Machine 4300023002500mm 72KW Installation Power

Name: FOCUSUN Domestic 20t Plate Ice Machine 4300023002500mm 72KW Installation Power
Brand: FOCUSUN plate ice maker
Price: 30 USD

Buy cheap FOCUSUN Domestic 20t Plate Ice Machine 43000*2300*2500mm 72KW Installation Power product

Applicable Industries : Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Energy & Mining, Food & Beverage Shops

Condition : New

Place of Origin : Shanghai, China

Brand Name : FOCUSUN plate ice maker

Ice Shape : plate ice

Voltage : 380v/50hz/3p

Power : 72KW installation power for 15ton

Dimension(L*W*H) : 43000*2300*2500mm

Weight : 4000kg

Warranty : 15 Months for plate ice maker

Key Selling Points : Full capacity under high temperature

Ice storage capacity : 15000kg

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : Pump, Engine, PLC, Evaporator compressor condensor

After-sales Service Provided : Engineers available to service machinery overseas

Brand : FOCUSUN PLATE ICE MACHINE

Keyword : plate ice

Refrigerant : R404a or R22 or R507

Cooling way : water cooling or air cooling condenser

Material : SUS304 Staineless Steel

Ice size in thickness : 10~12mm

Ice temperature : -5℃~-10℃

Transport package : Wooden Case

Ice storage bin : ice bin equipped with plate ice maker

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Egypt, United States, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Thailand, Uzbekistan

Showroom Location : None

Marketing Type : Fish&seafood products

Packaging Details : Focusun plate ice maker are well protected from any damage while shipping by vessels
Dimension: 2000*1500*2200mm
20ft or 40ft shipping container

Port : FOB Shanghai

Supply Ability : 60 Set/Sets per Quarter Focusun plate ice making maker

Price : $30,000.00/sets >=1 sets

MOQ : 1pc

Contact Now

Product Description

FOCUSUN domestic 20t plate ice machine 15t plate ice machine plate ice machine

FOCUSUN is the largest supplier of ice making machines in China, owns a factory of 36,000 square meters in producing different kinds of ice making machines such as block ice machine, tube ice machine, flake ice machine, plate ice machines, cold storage and packing machines. As for the Focusun plate ice machines which are available in capacities ranging from 1 to 60 tons per day. We classified all plate ice making equipment into 3 categories: small capacity, large capacity and containerized type.

Features of Focusun plate ice :

Plate Ice irregular transparent sheet ice, size around of 40×40mm to 80×80mm, which dimension is adjustable on request. Ice thickness is between 10~15mm, and it reaches to 20mm by Focusun tailor-made plate ice machine. The thickness of plate ice makes it suitable for long storage..

High density, small surface area and good cool storage effect.

Even cooling effect, good ventilation performance, and constant refrigerating temperature,

suitable for refrigeration of aquatic products.

Advantages:

Focusun Plate Ice Machine Features
Plate ice making machine use hot gas to make ice fall off fast and the whole process takes only 120 seconds;
After plate ice falls off, the water of low temperature is used for ice-making to save energy consumption and increase the iceproduction volume;
Add function of evacuating the remainder of the water in the cold water tank so that ice can be more clean and transparent;
The use of stainless steel evaporator meet the health and safety requirements;
Laser welding technology ensures minimum possibility of evaporator deform;
Evaporator plate is free to increase or decrease so there are more styles of products;
Time control can adjust the thickness of the plate ice;
Integrated modular equipment facilitates installation and maintenance on spot;
Touch screen, reserve function, Focusun mobile app remote video monitoring are available on request;

If the ice storage is full,the plate ice machine will switch automatically into the water tank control mode to make sure the cold water inside the cold water tank always be at the set level. If the ice level inside the ice storage is again going down, the ice plate machine will switch again automatically ino the ice makin mode. During perids in which the plate ice plant is not producing, the plant automatically controls the water temperatue of the cold water using the recrcuation mode.
Application fields: Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetables, fishing and aquatic insulations.

You could choose any models you like:

FOCUSUN Domestic 20t Plate Ice Machine 43000*2300*2500mm 72KW Installation Power

Models	Capacity	Electricity consumption	Dimension(mm)
FIP-10	1ton/day	6.69kw.h	1700×1200×1700
FIP-20	2ton/day	9.92kw.h	2200×1600×2000
FIP-30	3ton/day	14.4kw.h	2200×1500×2000

Models	Capacity	Electricity consumption	Dimension(mm)
FIP-50	5ton/day	25.15kw.h	2000×1800×2200
FIP-100	10tons/day	39.07kw.h	2200×1900×2200
FIP-150	15tons/day	56.35kw.h	2200×2100×2200

Models	Capacity	Electricity consumption	Dimension(mm)
FIP-200	20ton/day	84.00kw.h	3800×2200×2450
FIP-240	24ton/day	100.1kw.h	4500×2200×2450
FIP-320	32ton/day	124kw.h	3200×2200×2450

Models
FIP-120	12ton/day	44.47kw.h	2200×1900×2200
FIP-400	40ton/day	154.7kw.h	3800×2200×2450
FIP-480	48ton/day	189.1kw.h	3200×2200×2450

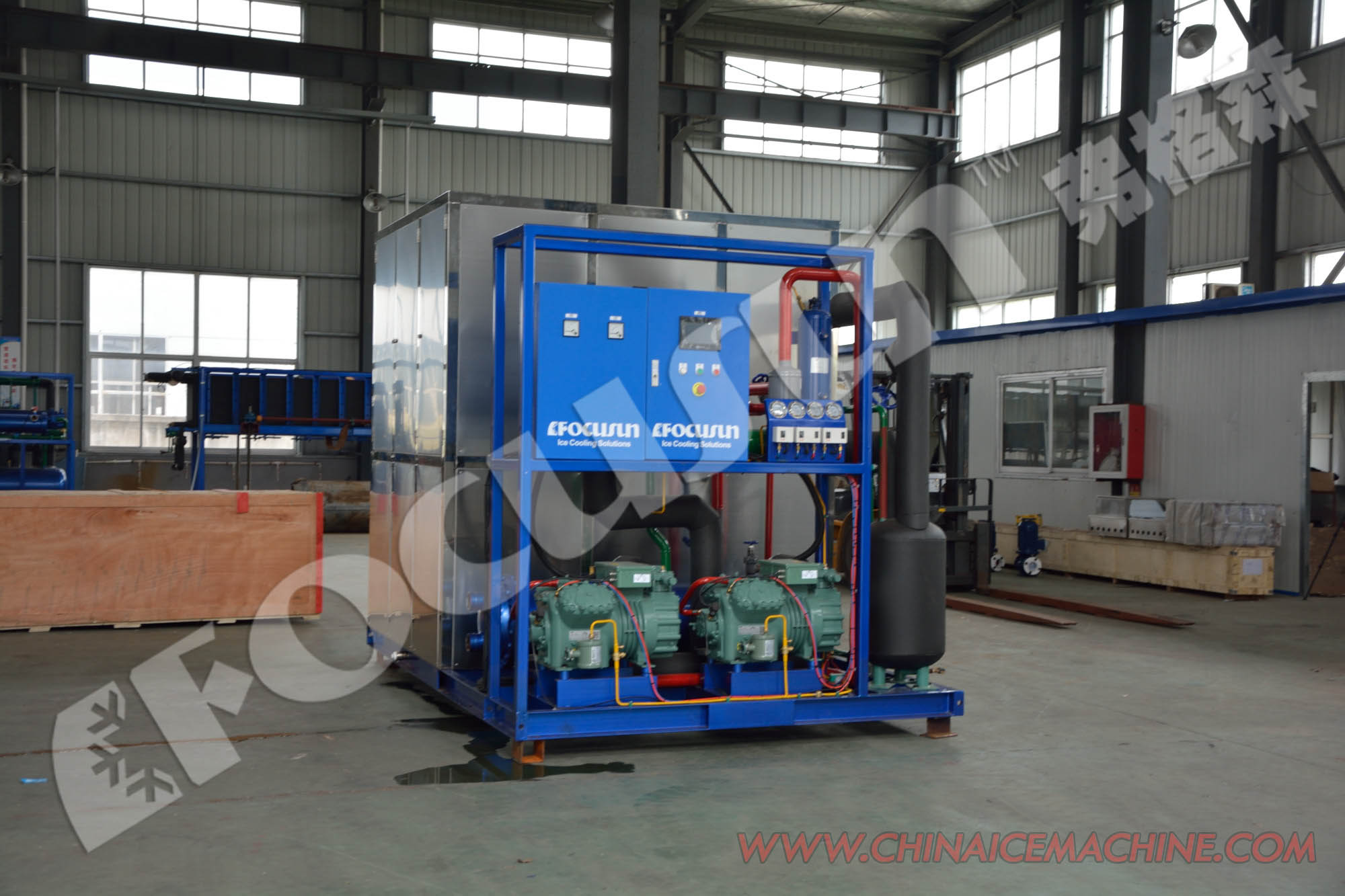

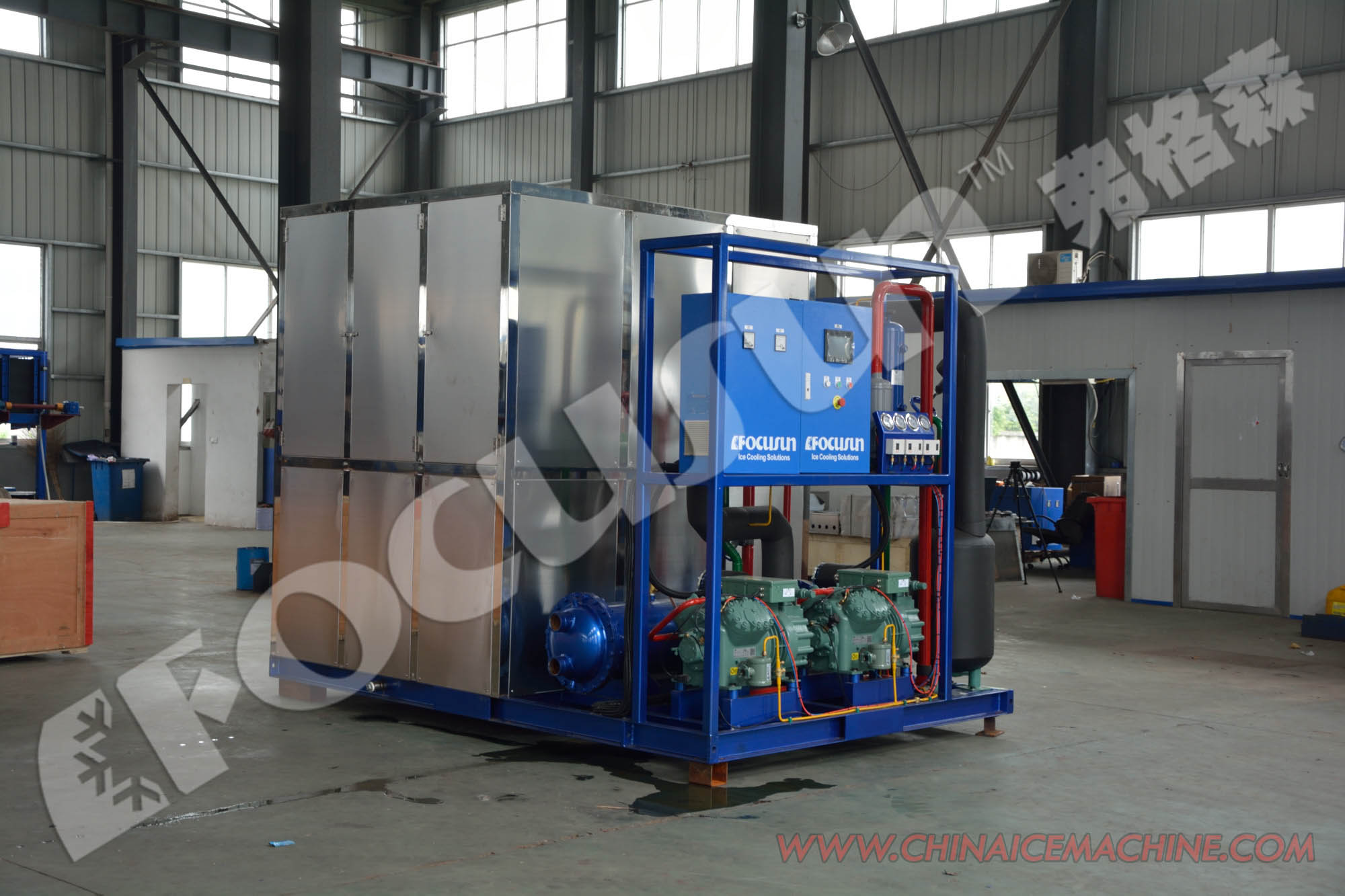

Detailed Images

FIP-150WS	Specifications For Plate Ice Machine
Power Supply	380V/50Hz/3P / 220V/60Hz/3P / 460V/60Hz/3P
Cooling Way	Water Cooling/Air Cooling/Evaporative Cooling
Refrigerant	R22/R404A
Max. Ambient Temp.	+45ºC
Supply Water Temp.	+25ºC

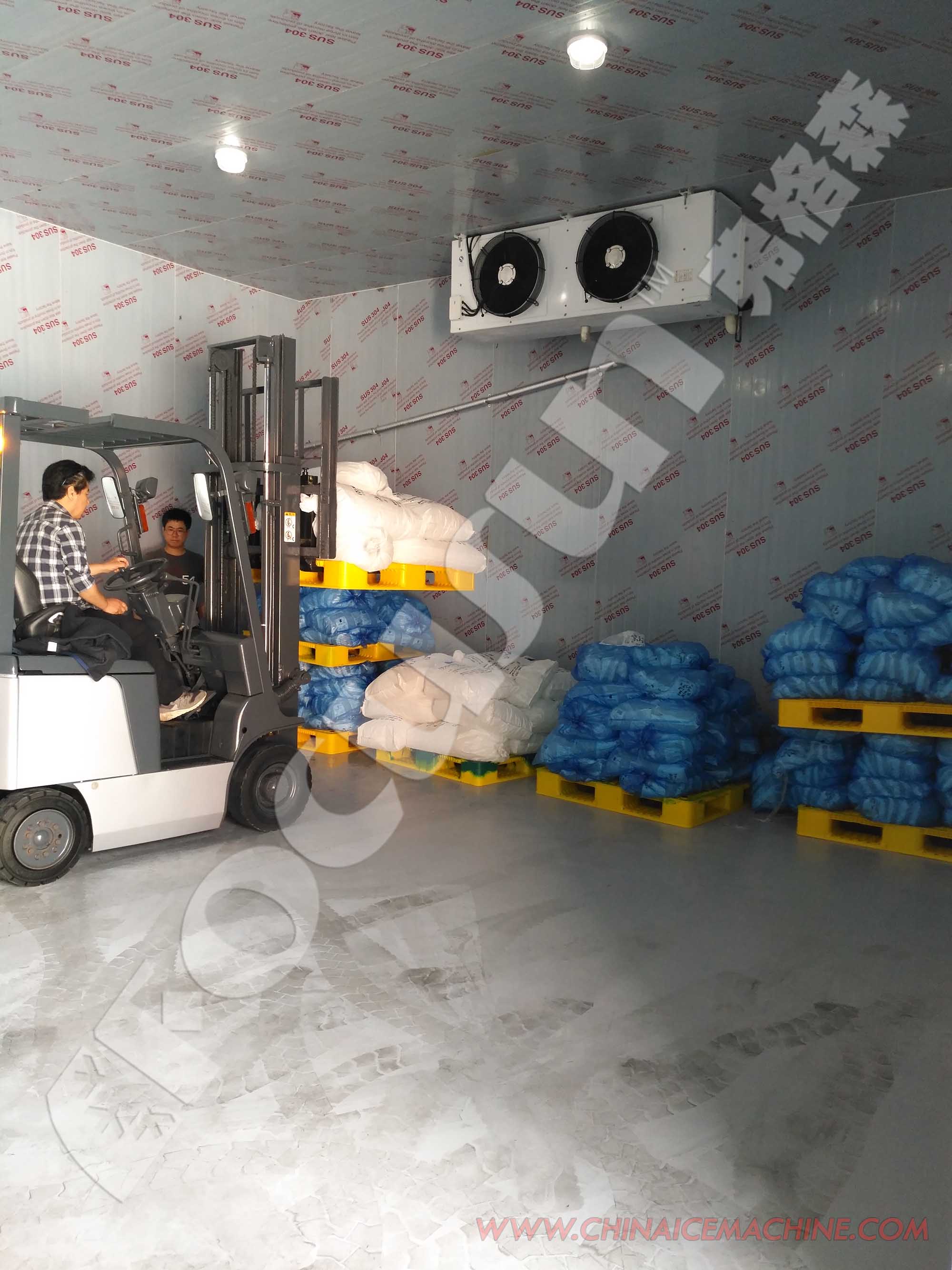

Project pictures of plate ice machine

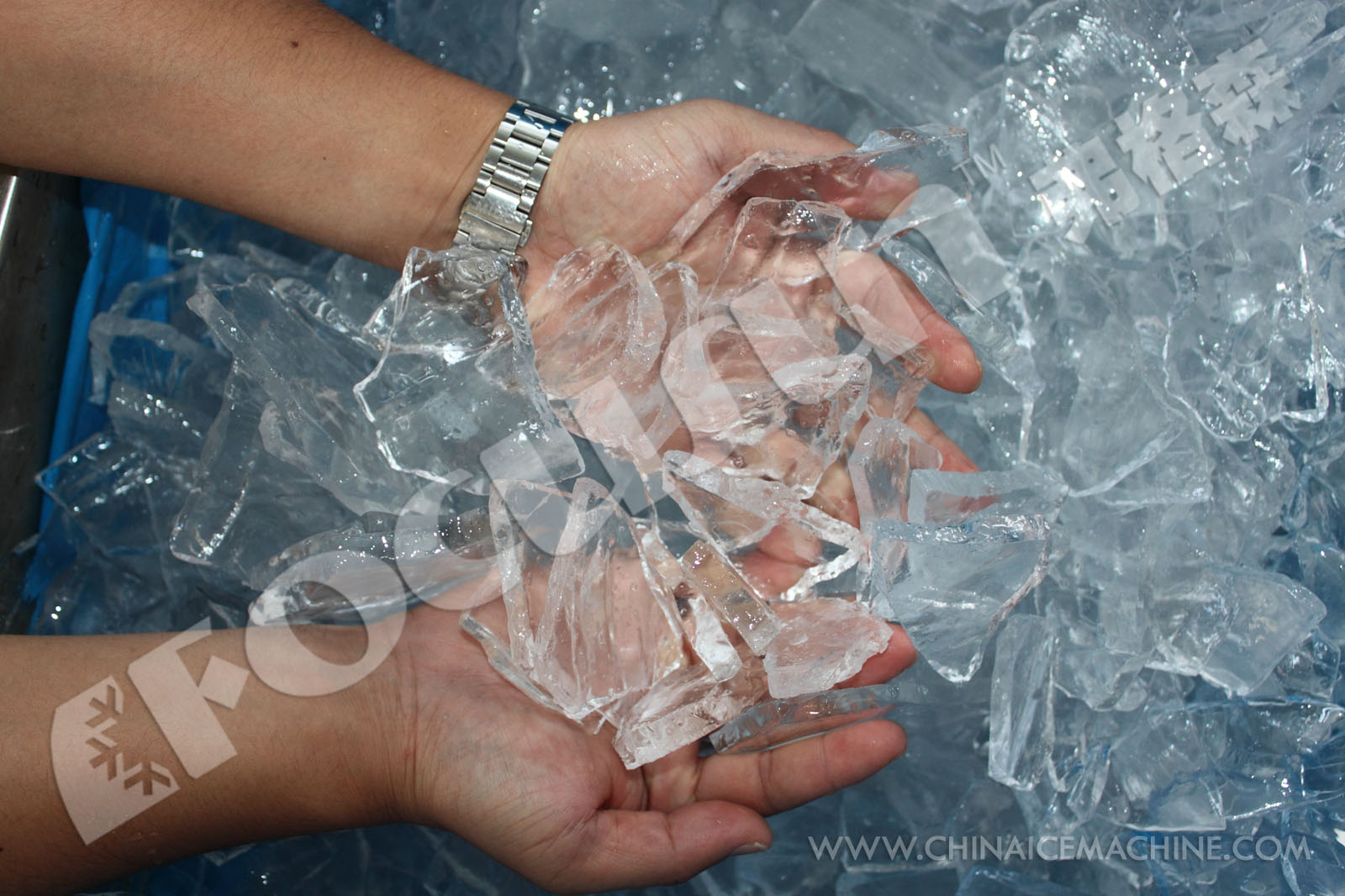

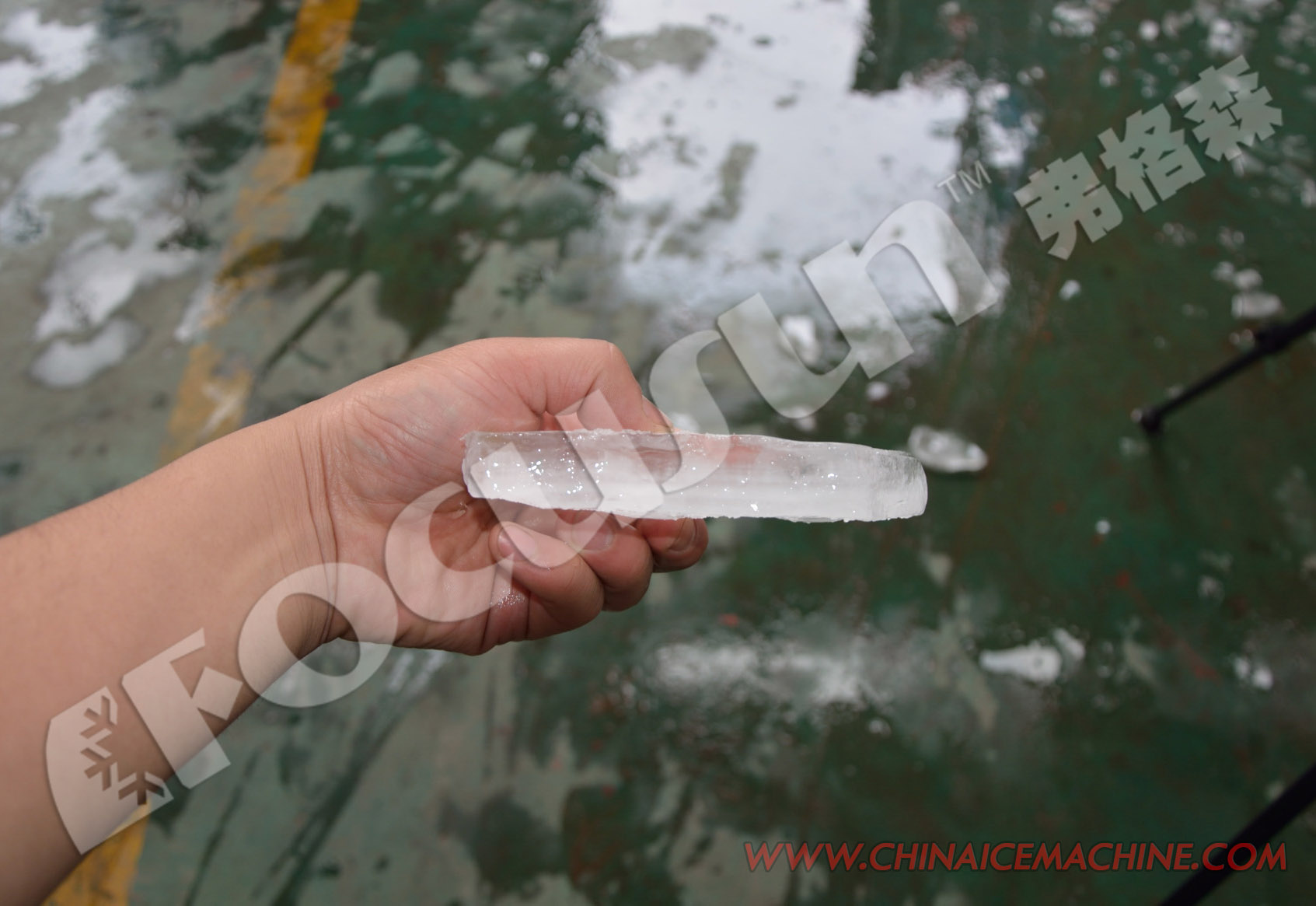

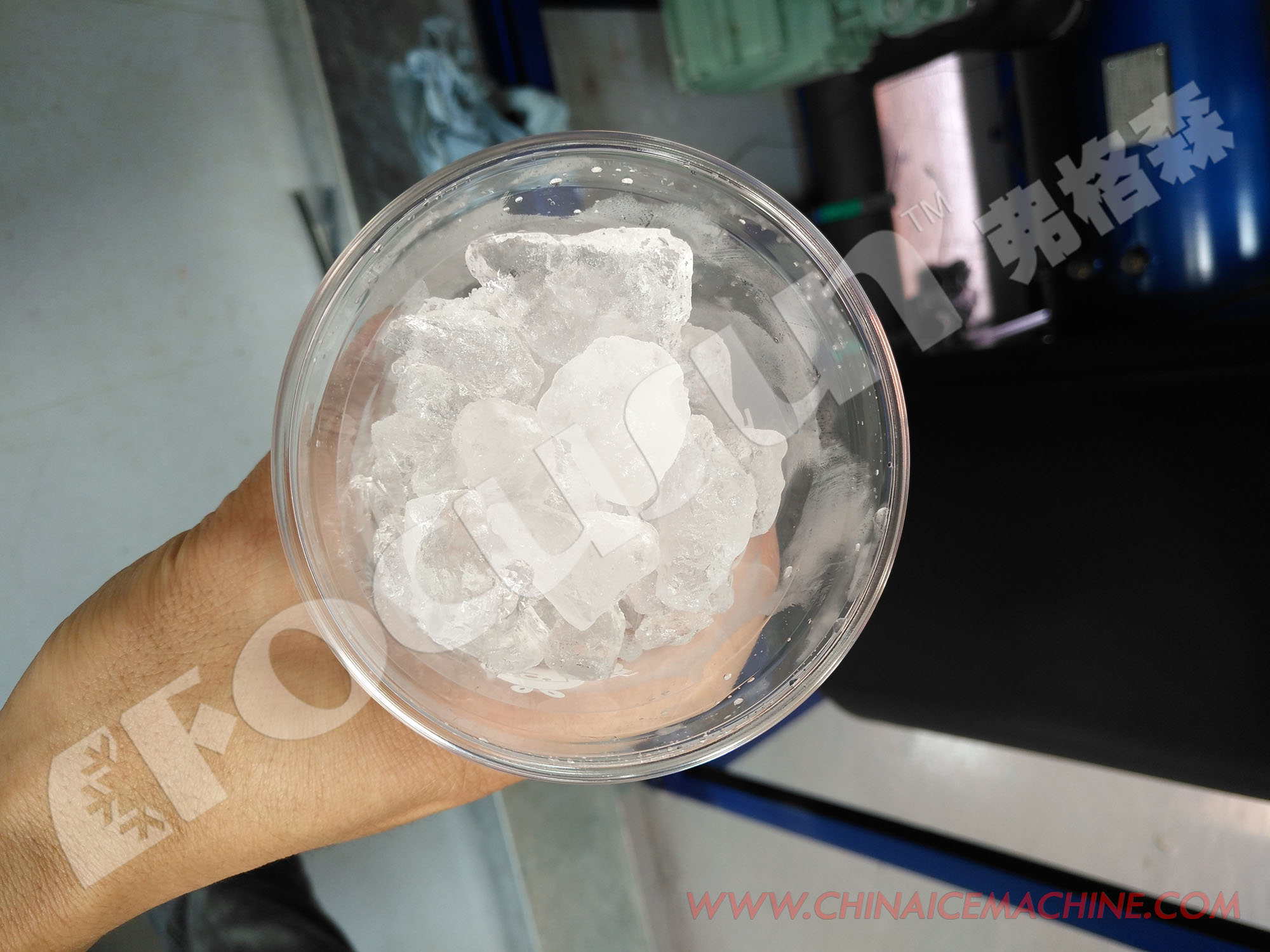

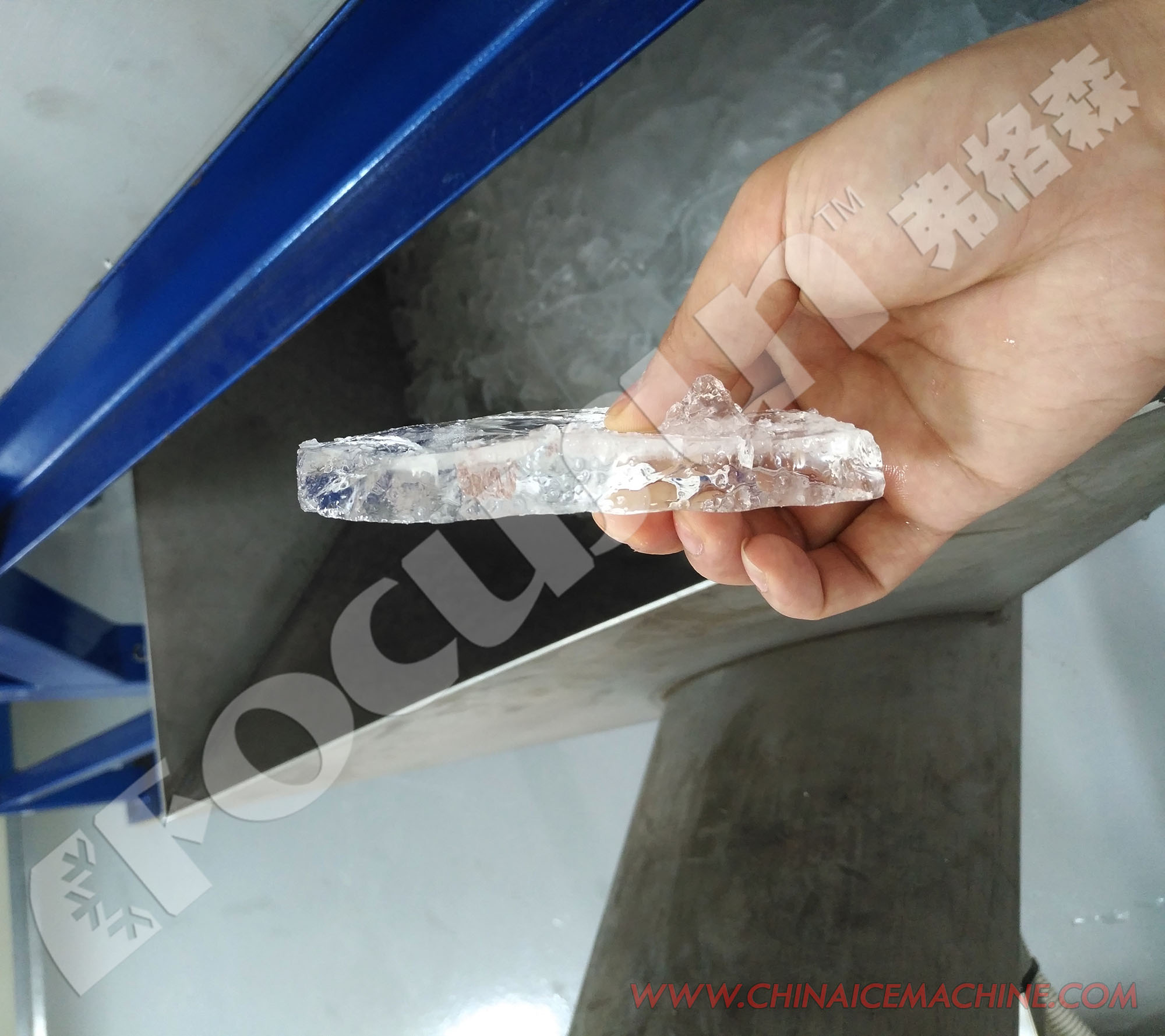

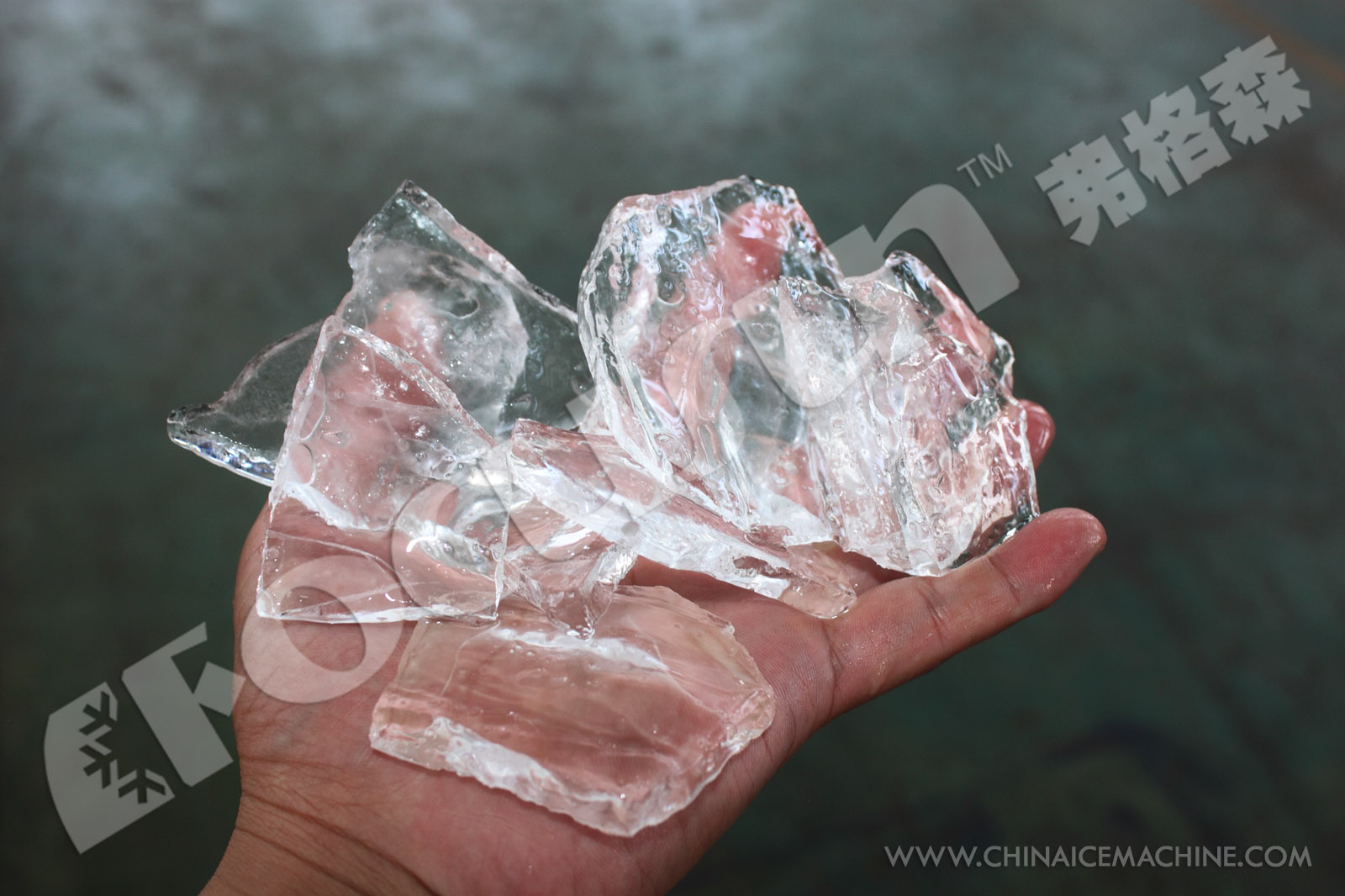

Plate ice introduction: Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 20mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life. Small capacity from 1tons to 48tons day offered.

In Plate Ice Machines, plates of ice form on both sides of stainless steel plates. The system is easy to maintain and clean. These plates of ice are hygienic, transparent and very hard, and can be stored for long periods of time. Thickness can be adjusted up to 20mm. Most of the parts are corrosion resistant and have a long service life. Our systems are energy efficient and operated via easy-to-use control panels. They’re self-contained systems, producing up to 48 tons of plate ice per day. Our Focusun plate ice machines are designed to work efficiently in different working conditions, some of the core applications of our Plate Ice Machines are: Fish processing Meat processing Poultry processing Supermarket Laboratories, pharmaceutical Chemical industries

Welcome your inquiry, we will contact you today!
