Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable

Name: Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
Brand: FOCUSUN
Price: 31 USD

Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable product

Condition : New

Applicable Industries : Hotels, Manufacturing Plant, Farms, Restaurant, Construction Works

Weight (KG) : 3200

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 3 years

Core Components : PLC, compressor, Condenser, Evaporator

Type : COMPRESSOR

Place of Origin : China

Brand Name : FOCUSUN

Warranty : 15 MONTHS

Product name : fresh flake ice maker

Application : making ice

Refrigerant : R404a/R22

Compressor : Bizter

Voltage : 380V-440V/3Ph/50HZ-60HZ

Key words : Flake ice

Material : Carbon Steel inside sus304 outside

Consenser : air cooling condenser

After Warranty Service1 : Video technical support

After-sales Service 2 : Online support

Marketing Type : New Product 2020

Packaging Details : CONTAINER

Port : shanghai port

Supply Ability : 100 Case/Cases per Quarter

Price : $31,999.00/sets >=1 sets

MOQ : 1pc

Contact Now

About Focusun

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.

Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable

Product Description

Product Application

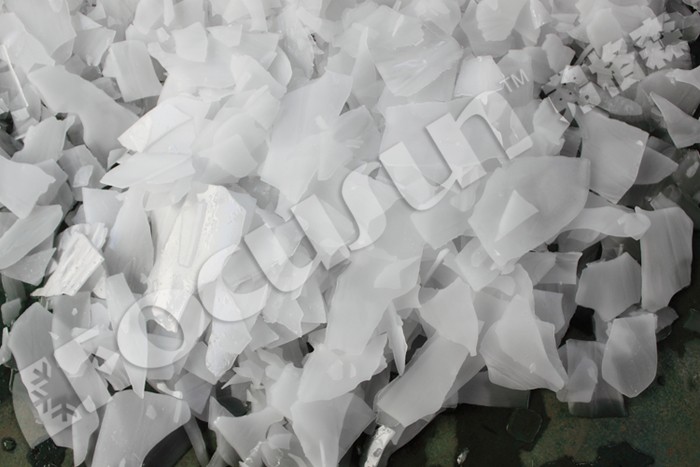

Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5mm.The thin ice can be directly used for stirring and mixing refrigerated materials.No acute edges and corners so it will not damage the surface of the cooled object.Large contact area and fast cooling speed,easy to crush and mold.

Main Features

1)Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
2)Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
3)The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
4)Photoelectric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
5)Direct liquid feeding and dry evaporation, simple&safe to control.
6)Integrated modular design, convenient to install and maintain.

Detailed Images

Machine Parts

Name: Flake ice evaporator

The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop unblocked with special processing technology. The internally-scraping ice-making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant

Machine Features

1. Motor

2. Refrigerant runner

3. Water inlet

4. Speed reducer

5. Ice skates

6. Water sprinkling pan

7. Principle axis

8. Water sprinkler

9. Water return pipe

10. Inner wall

11. Insulation layer

12. Ince outlet

13. Low water pan

14. Stainless steel wrapped sheet

Ice Application

Flake ice is used in concrete mixing, chemical and dye industries, artificial ice snow engineering and artificial skiing field application, dairy production, poultry processing, fruit and vegetable preservation, aquatic processing, meat processing, supermarket preservation.

Standard working condition

Dry bulb temperature is 33 celuis and water inlet temperature is 20 celuis. The above mentioned parameter will be changed subject to technical innovation without further notic.

Specification

item	value
Condition	New
Applicable Industries	Hotels, Manufacturing Plant, Farms, Restaurant, Construction Works
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location	none
Showroom Location	none
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	3 years
Core Components	compressor
Type	COMPRESSOR
Place of Origin	China
Brand Name	FOCUSUN
Certification	ce
After-sales Service Provided	Online support
Warranty	15 MONTHS
Color	Blue
Product name	fresh flake ice maker
Application	making ice
Refrigerant	R404a/R22/R507
Compressor	Bizter
Voltage	380V-440V/3Ph/50HZ-60HZ
Key words	Flake ice
Material	Carbon Steel inside sus304 outside
Consenser	air cooling condenser

FAQ

1. who are we?
We are based in Shanghai, China, start from 2009,sell to Western Europe(12.50%),Eastern Asia(12.50%),Mid East(12.50%),Oceania(12.50%),Africa(12.50%),Eastern Europe(12.50%),South America(12.50%),North America(12.50%). There are total about 501-1000 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Tube Ice Machine,Flack Ice Machine,Block Ice Machine,Plate Ice Machine,Cube Ice Machine

4. why should you buy from us not from other suppliers?
First inventor of Tube Ice Machine in 1929; Over 80 years of experience of engineering and manufacturing in refrigeration industry; Cost-effective Machines: German Technology but with Chinese Price; Own 18 patented refrigeration technologies;

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Factory visit
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you at proper time, until you get the products. When you got the goods, our engineer for the installation and offer training till you 100% give a satisfication. If you have any questions about the problem, contact with us, we will offer the solve way for you.

Certifications

Packing & Delivery

PACKING DETAILS

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

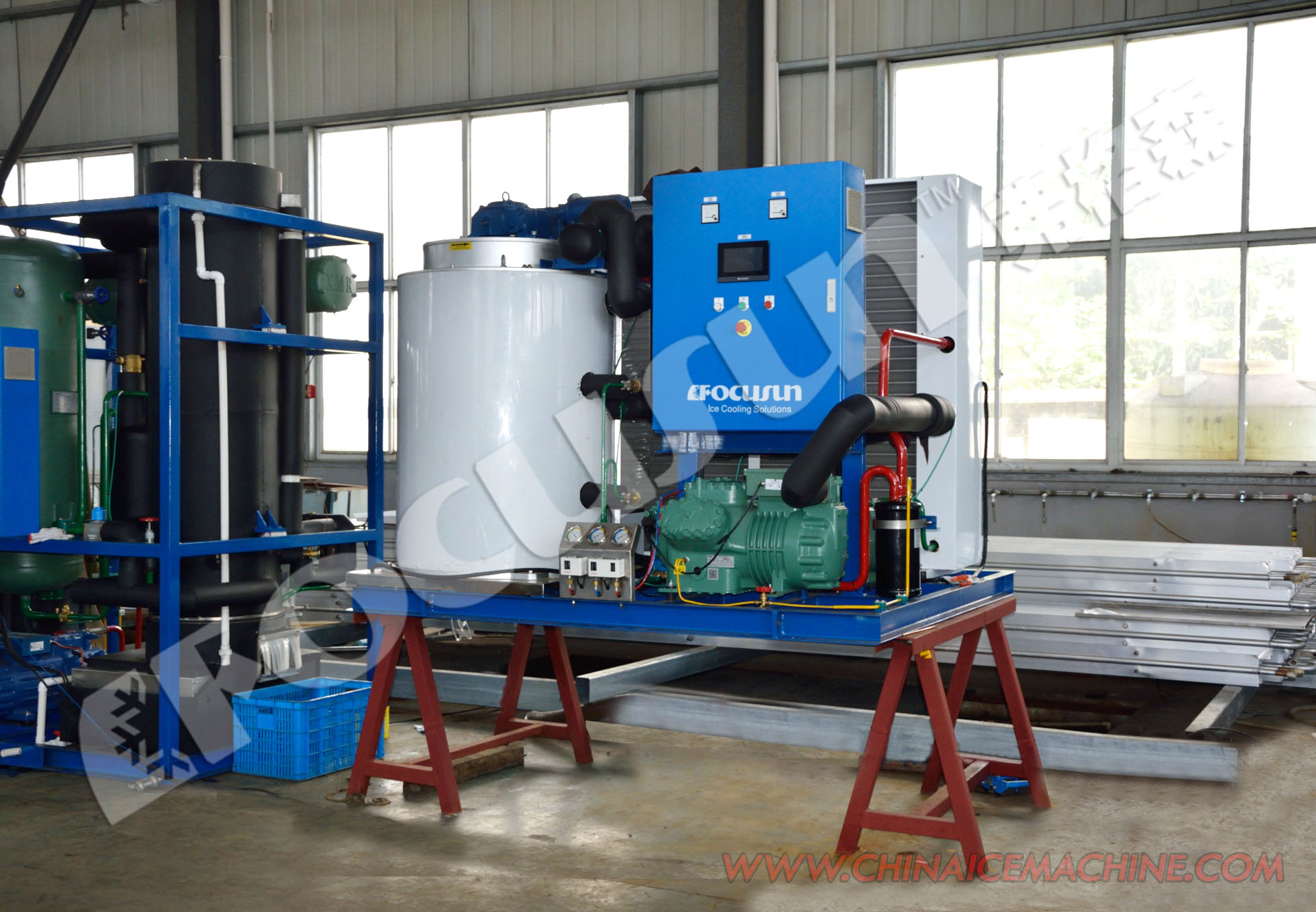

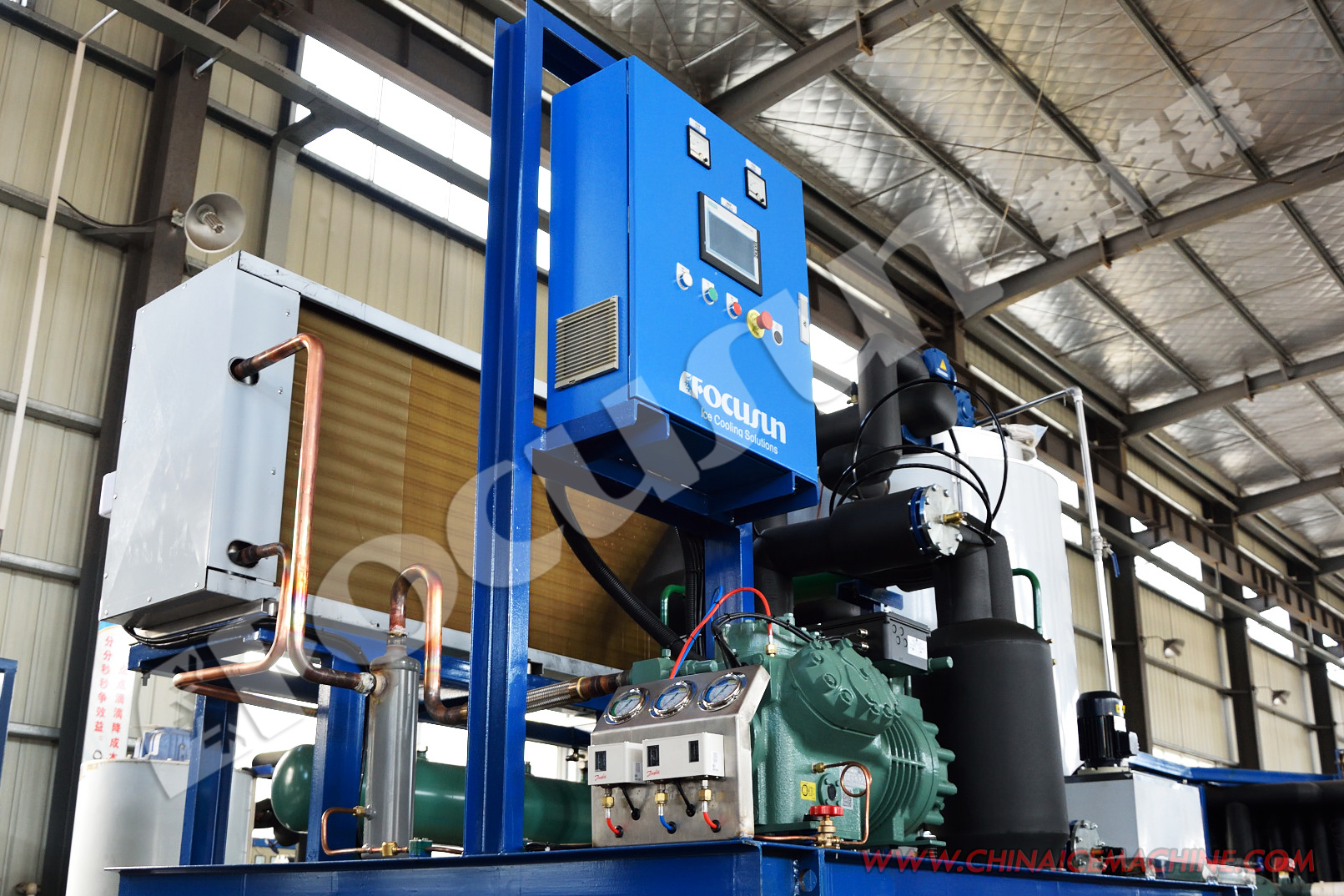

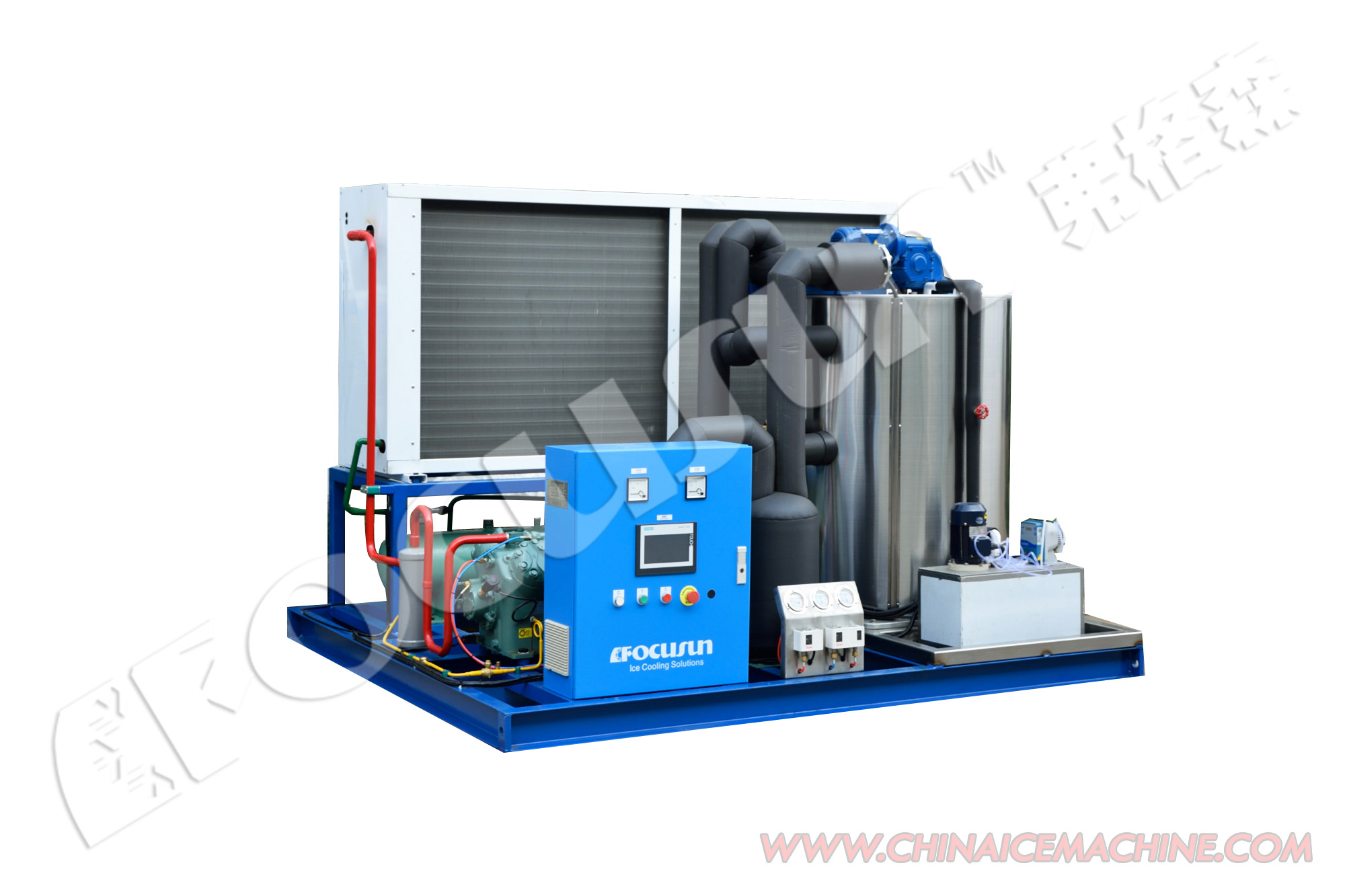

Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable Images
