1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support

Applicable Industries : Manufacturing Plant, Food & Beverage Shops, Other, Fishery

Condition : New

Place of Origin : Jiangsu

Brand Name : Focusun

Ice Shape : ICE BLOCK

Voltage : 220v~440v

Power : 28kw

Dimension(L*W*H) : 1800mmx1200mmx2000mm

Weight : 960 KG

Warranty : 1 Year

Key Selling Points : Automatic

Ice storage capacity : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : Other, PLC, Condenser, Compressor, Evaporator

Compressor brand : Bitzer, Refcomp

Application : Industrial, Fresh-keeping

Product name : Block Ice Machine

Evaporator : aluminum

Keyword : Block Ice Plant

Ice size : Customized

Refrigerant : R404A/R22

Cooling way : Air cooing/Water cooling

After-sales Service Provided1 : Field installation, commissioning and training

After-sales Service Provided3 : Video technical support

Control system : Simens

Marketing Type : Hot Product 2022

Packaging Details : plastic film

Port : shanghai port

Supply Ability : 50 Set/Sets per Month

Price : $25,000.00/sets >=1 sets

MOQ : 1pc

Contact Now

1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support
Product Overview

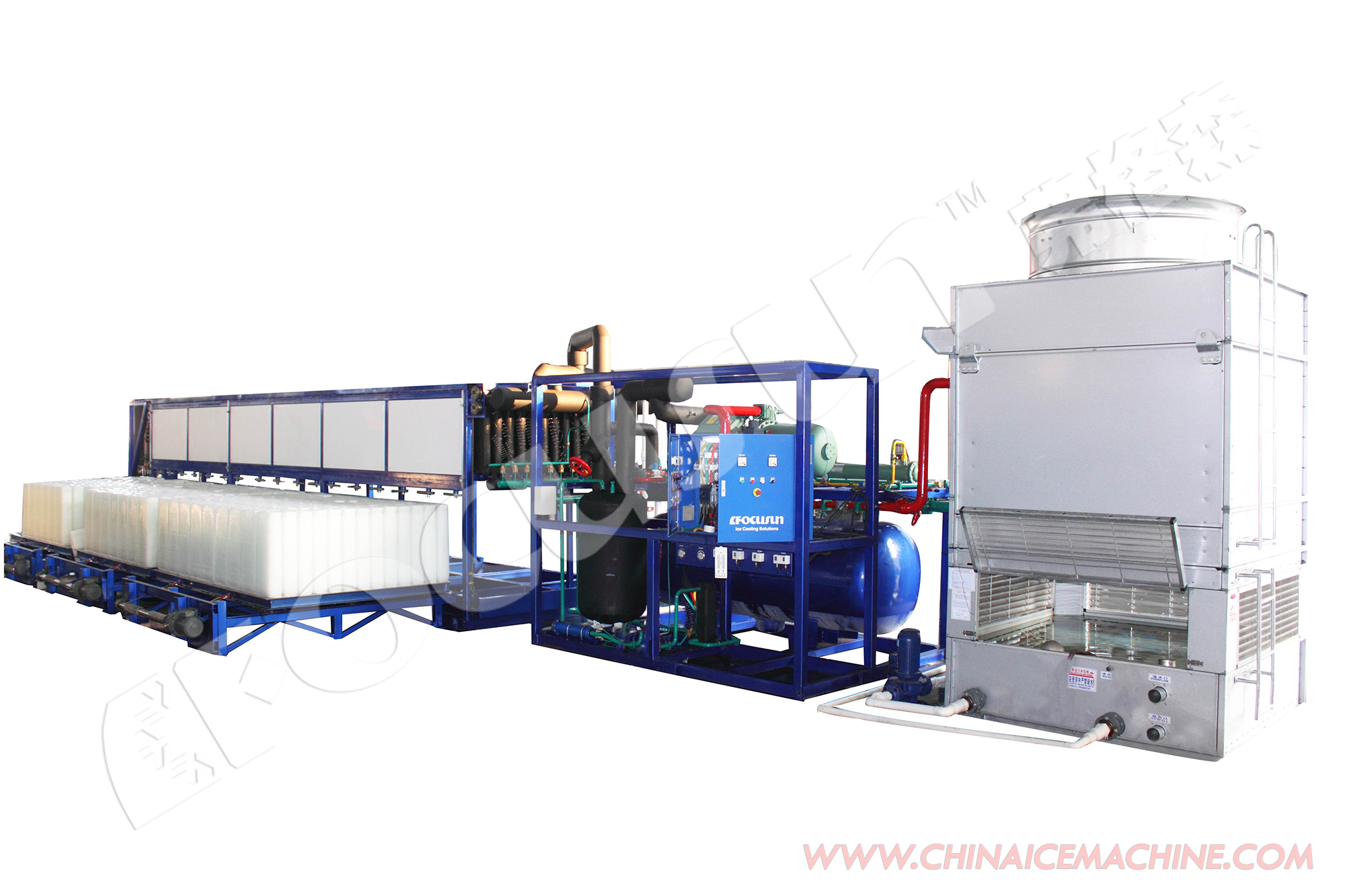

Focusun Direct Refrigeration Block Ice Machine equipped with fully automatic ice moving


Focsun direct refrigeration block ice machine, perfect at direct fast cooling. The principle is to use the specially designed cooling channel of the ice making box to carry on the circulation of the low temperature refrigerant, so as to rapidly cool the water in the box and realize rapid ice making.

Direct refrigeration block ice machine needs no brine tank, hoist, ice thawing tank and the water doe not need to add industrial salt. There is no need to change ice buckets and labors does not need 24 hours working time.
Why choose us?
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical SupportFully automatic

1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical SupportSave 54%electricity compared with normal block ice machine

1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical SupportOnly 20 minute quick ice doffing

1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical SupportAt least 27 years life span

1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support
Product Specifications
No
Item
Data
1
Operating Power
5.0kw
2
Installation Power
10.0kw
3
Condenser Capacity
28.0kw
4
Power Consumption/ton
75kw.h/ton
5
Each Freezing period
30~60min
6
Refrigerant
R404a/R22
7
Transformer
15KVA
8
Generator
50KVA
Product Configuration
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support
Bitzer compressor
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support
Simens PLC
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support
Danfoss Controller
Smart APP

Foucusun Direct Refrigeration Block Ice Machine is equipped with the smart APP,which can be an unique design in the Ice Making Machine.It will be much more convenient to operate the machine.
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support

Focusun Inte-star Control System APP includes the following features:
1.Check all running data and working status of the machine anytime and anywhere.
2.Realize remote on/off operation and improve work efficiency.
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support

3.Realize one-click report when find features,24hours fast response.
4.Regular maintenance warning to protect your machine.
Customer Site
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support

On-set Installation in India
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support

On-set Installation in Mali
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support

On-set Installation in Oman
Related Products
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support
Ice Crusher

5~15T/day capacity
Crushing the ice shape as you want.
The machine can be made stainless steel. Durable usage.
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support
Ice Packing Machine

Adjustable Ice Packing speed.Meet your ice packing needs. Stainless steel,food standard. We also provide the cheaper Q235 material.
1ton/24hours-30ton/24hours Direct System Block Ice Machine with Video Technical Support
Ice Storage Room

After producing the block ice, you
may need a cold room to store the block ice temporarily,
Keep good quality of block ice.
